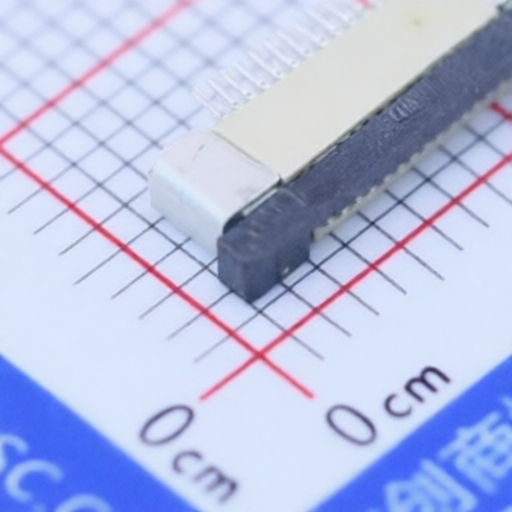

CONNFLY Elec DS1020-09-15VBT1B
Manufacturer:
CONNFLY Elec
Asian Brands
Mfr. Part #:
DS1020-09-15VBT1B
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 15POS 0.5mm TOP CNT SMD R/A
Description:
FFC/FPC Connector 15 Position 0.5mm Pitch Top Contact Surface Mount, Right Angle -25℃~+85℃
Datasheet:
CONNFLY Elec DS1020-09-15VBT1B
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Locking Feature:
Slide Lock
Operating Temperature:
-40℃~+105℃
Number of Contacts:
15P
Pitch:
0.5mm
Current Rating:
500mA
Voltage Rating (Max):
50V
Contact Type:
Top Contact
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
-
Contact Material:
Copper alloy
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 54 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
