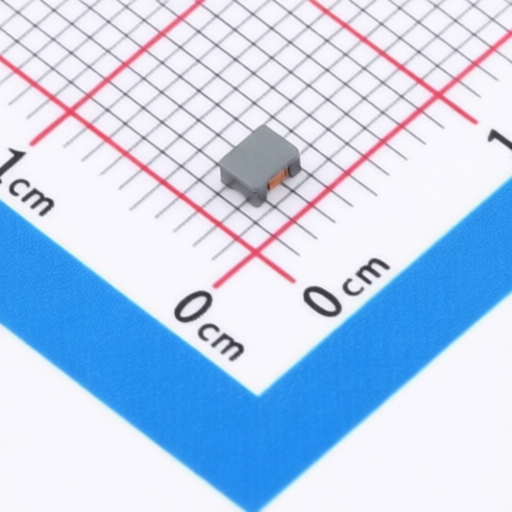

Coilank ACM2520T801W2
Manufacturer:
Coilank
Asian Brands
Mfr. Part #:
ACM2520T801W2
Package:
SMD-4P,2.5x2mm
Customer #:
Key Attributes:
CMC 300mA 800Ω SMD
Description:
Common Mode Choke Surface Mount-4P 2.5x2mm 800Ω@100MHz 300mA DCR 420mΩ
Datasheet:
Coilank ACM2520T801W2
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,2.5x2mm
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
420mΩ
Voltage Rating - DC:
50V
Voltage Withstand:
125V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Coilank
340 Products
Shenzhen Coilank Technology Co., Ltd
(hereinafter referred to as "COILANK" or "COILANK INTERNATIONAL") was established in 2009, it is a national high-tech enterprise specializing in the R&D, production, and sales of SMD inductors and other magnetic components. COILANK has been committed to the development of fully automatic, miniaturized SMD wire wound power inductors, precision high-frequency coils, common mode inductors, and other products. The products widely used in automobile electronics, network communication, smart home, medical, and other fields. COILANK has passed ISO9001, ISO14001, RoHS, REACH, IATF16949, and other international system certifications. COILANK is determined to provide a better inductor, to serve the global automobile and other electronics industry, and to help customers create higher market value.
