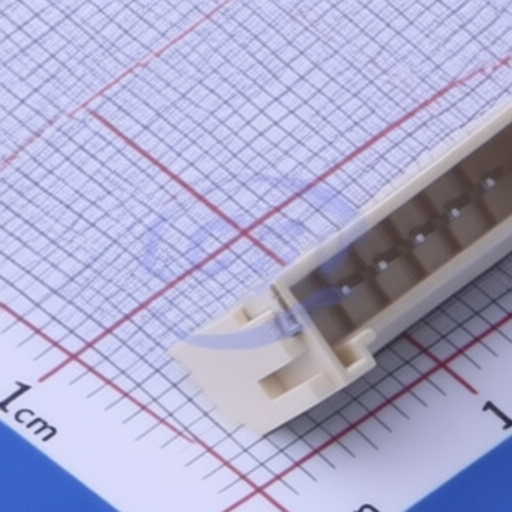

CNJM CNJMA2008WR-S-7P
Manufacturer:
CNJM
Asian Brands
Mfr. Part #:
CNJMA2008WR-S-7P
Package:
SMD,P=2mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 7POS 2mm
Description:
Connector Header 7 position 2mm Pitch 3A Surface Mount, Right Angle -40℃~+105℃
Datasheet:
CNJM CNJMA2008WR-S-7P
Products Specifications
Manufacturer:
Package:
SMD,P=2mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
10.3mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x7P
Reference Series:
-
Contact Material:
LCP
Pitch:
2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
7
Number of Rows:
1
Z-Height of the Board:
5.2mm
Mounting Type:
Surface Mount, Right Angle
Row Spacing:
-
Operating Temperature:
-40℃~+105℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
