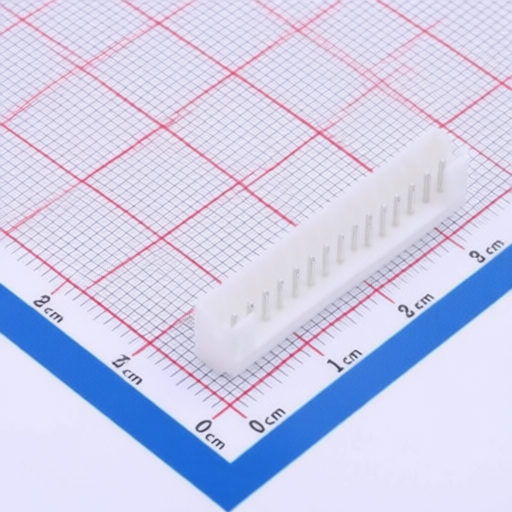

CNJM CNJMA2001WR-15P
Manufacturer:
CNJM
Asian Brands
Mfr. Part #:
CNJMA2001WR-15P
Package:
Through Hole,Right Angle,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 15POS 2mm
Description:
1x15P PA66 2mm 100V 15 1 -40℃~+105℃ Right Angle Through Hole,Right Angle,P=2mm Headers, Male Pins RoHS
Datasheet:
CNJM CNJMA2001WR-15P
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2mm
Y-Width of Bottom Edge on Board:
6.1mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x15P
Contact Material:
PA66
Pitch:
2mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
15
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
32mm
Operating Temperature:
-40℃~+105℃
Z-Height of the Board:
5mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 400 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
