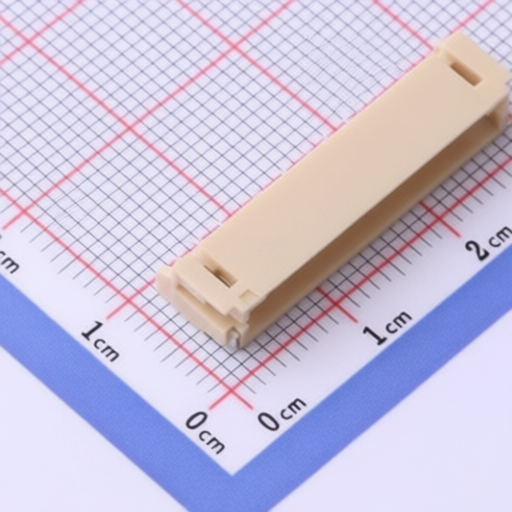

CNJM CNJMA2001WR-S-12P
Manufacturer:
CNJM
Asian Brands
Mfr. Part #:
CNJMA2001WR-S-12P
Package:
SMD,P=2mm
Customer #:
Key Attributes:
2.0mm pitch housing and terminal
Description:
1x12P PA9T 2mm 100V 12 1 Surface Mount, Right Angle -40℃~+105℃ SMD,P=2mm Headers, Male Pins RoHS
Datasheet:
CNJM CNJMA2001WR-S-12P
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
7.6mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x12P
Contact Material:
PA9T
Pitch:
2mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
12
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
28mm
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-40℃~+105℃
Z-Height of the Board:
5.5mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CNJM
375 Products
Joint More Precision Electronics was established in September 2008 and located in China hardware mold famous town of Dongguan Changan, it's adjacent to the special economic zone of Shenzhen. Companies with connectors product design, production, and sale as a whole. The main products are HSG, Wafer, header and very widely used in all kinds of home appliance, digital products, computer, communication equipment, modern office equipment, car audio etc, various products meet all kinds of safety requirements in the industry and recognized to UL, CSA, TUV safety agency authority, etc and with the environmental quality of the material guarantee product complies with even more than the ROHS environmental standards. After the market test, products exported to Europe and America, Southeast Asia and Hong Kong and Taiwan regions.
