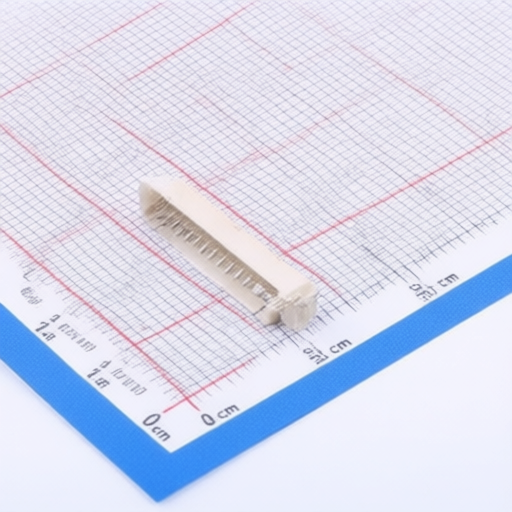

CNJM CNJMA1251WR-S-15P
Manufacturer:
CNJM
Asian Brands
Mfr. Part #:
CNJMA1251WR-S-15P
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER SMD R/A 15POS 1.25mm
Description:
1x15P LCP 1.25mm 125V 15 1 Surface Mount, Right Angle -40℃~+105℃ SMD,P=1.25mm Headers, Male Pins RoHS
Datasheet:
CNJM CNJMA1251WR-S-15P
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
4.4mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x15P
Contact Material:
LCP
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
15
Number of Rows:
1
Z-Height of the Board:
3.5mm
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-40℃~+105℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CNJM
375 Products
Joint More Precision Electronics was established in September 2008 and located in China hardware mold famous town of Dongguan Changan, it's adjacent to the special economic zone of Shenzhen. Companies with connectors product design, production, and sale as a whole. The main products are HSG, Wafer, header and very widely used in all kinds of home appliance, digital products, computer, communication equipment, modern office equipment, car audio etc, various products meet all kinds of safety requirements in the industry and recognized to UL, CSA, TUV safety agency authority, etc and with the environmental quality of the material guarantee product complies with even more than the ROHS environmental standards. After the market test, products exported to Europe and America, Southeast Asia and Hong Kong and Taiwan regions.
