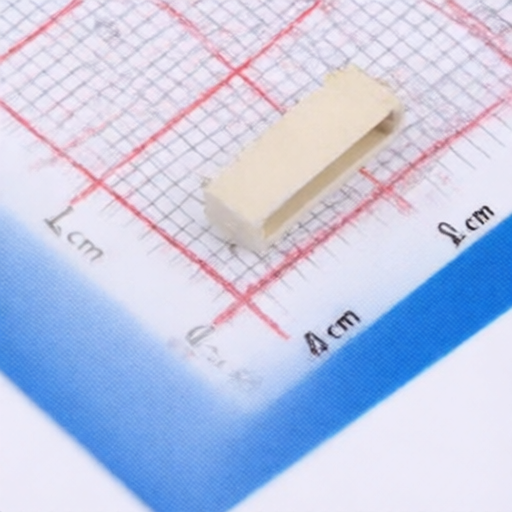

Ckmtw W-1001M09P-R000
Manufacturer:
Ckmtw
Asian Brands
Mfr. Part #:
W-1001M09P-R000
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 9POS 1mm
Description:
1x9P Tin 1mm 50V 9 1 Surface Mount, Right Angle -25℃~+85℃ SMD,P=1mm,Surface Mount,Right Angle Headers, Male Pins RoHS
Datasheet:
Ckmtw W-1001M09P-R000
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
4.5mm
Pins Structure:
1x9P
Contact Plating:
Tin
Pitch:
1mm
Contact Material:
Phosphor Bronze;LCP
Voltage Rating (Max):
50V
Number of PINs Per Row:
9
Number of Rows:
1
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
3.15mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
