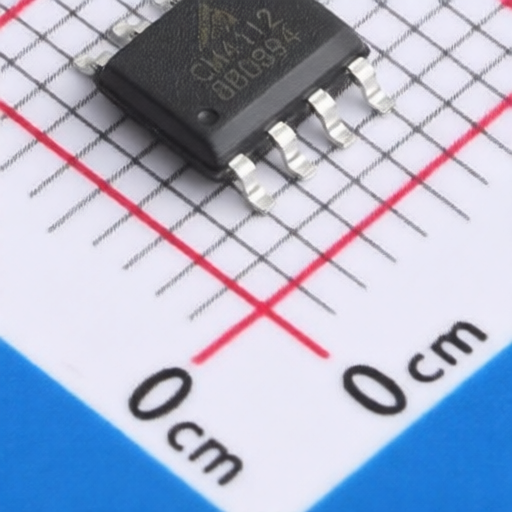

CIMO CM4112-SOPTA
Manufacturer:
CIMO
Asian Brands
Mfr. Part #:
CM4112-SOPTA
Package:
SOP-8
Customer #:
Key Attributes:
Dual-channel chopper operational amplifier with zero temperature drift, high precision, low noise, and low input bias current
Description:
13.4uV 117pA 0.88V/us 135dB 2MHz 2 Rail-to-Rail Output SOP-8 Amplifiers RoHS
Datasheet:
CIMO CM4112-SOPTA
Products Specifications
Manufacturer:
Package:
SOP-8
Vos - Input Offset Voltage:
13.4uV
Ib - Input Bias Current:
117pA
Slew Rate:
0.88V/us
Quiescent Current(Iq):
950uA
Common Mode Rejection Ratio(CMRR):
135dB
Operating Temperature:
-40℃~+85℃
Output Current:
32mA
Voltage - Supply:
-18V~-5V;5V~18V
Gain Bandwidth Product:
2MHz
Input Offset Voltage Drift(Vos TC):
120nV/℃
Maximum Power Supply Range (Vdd-Vss):
36V
Number of Channels:
2
Rail To Rail:
Rail-to-Rail Output
Input Offset Current(Ios):
251.7pA
Noise density(eN):
8.2nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
