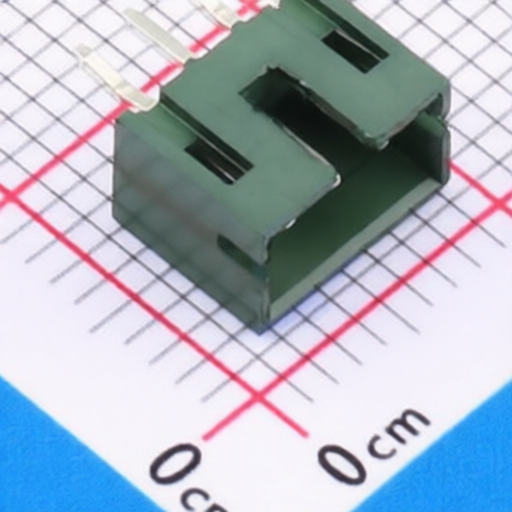

chxunda XD-PH-3A-V
Manufacturer:
chxunda
Mfr. Part #:
XD-PH-3A-V
Package:
Through Hole,P=2mm
Customer #:
Description:
Connector Header 2mm Pitch 2A Through Hole -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,P=2mm
Y-Width of Bottom Edge on Board:
4.7mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x3P
Contact Plating:
Tin
Contact Material:
Brass;PA66
Pitch:
2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
3
Number of Rows:
1
Z-Height of the Board:
6mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Through Hole
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
chxunda
1056 Products
CHXUNDA, established in Bao'an District, Shenzhen, is an integrated medium and small-sized enterprise focusing on R&D, manufacturing, and sales. The company primarily produces a series of products including connectors, switches, and sockets.
