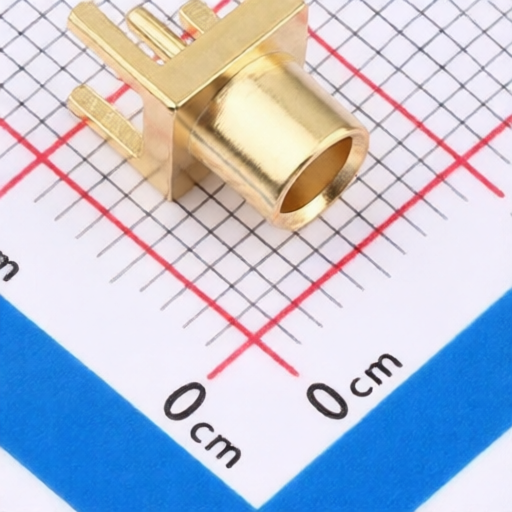

chxunda XD-MCX-KE-9H-D011-01
Manufacturer:
chxunda
Asian Brands
Mfr. Part #:
XD-MCX-KE-9H-D011-01
Package:
Through Hole
Customer #:
Description:
1 Inner Bore MCX Board Side Positive Pin -40℃~+125℃ 3GHz 50Ω 4.5mm Through Hole Coaxial Connector (RF) Assemblies RoHS
Products Specifications
Manufacturer:
Package:
Through Hole
Number of Ports:
1
Interface:
Inner Bore
RF Series:
MCX
Connector Type:
Board Side
Style:
Positive Pin
Rated voltage:
335V
Operating Temperature:
-40℃~+125℃
Frequency:
3GHz
Impedance:
50Ω
Interface Diameter:
4.5mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
chxunda
1056 Products
CHXUNDA, established in Bao'an District, Shenzhen, is an integrated medium and small-sized enterprise focusing on R&D, manufacturing, and sales. The company primarily produces a series of products including connectors, switches, and sockets.
