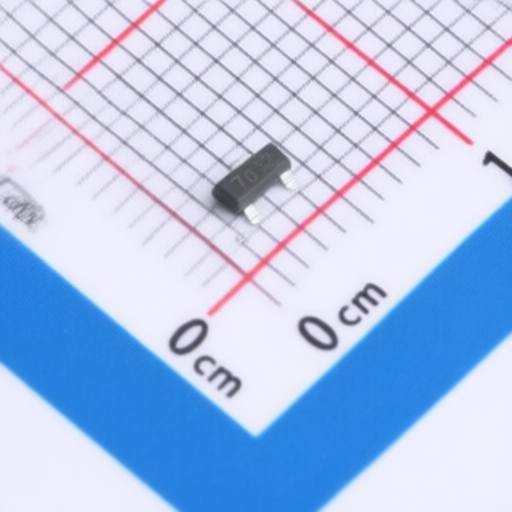

ChipNobo 2N7002_R1_00001-CN
Manufacturer:
ChipNobo
Asian Brands
Mfr. Part #:
2N7002_R1_00001-CN
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 60V 115mA SOT-23
Description:
N-Channel 60V 115mA 225mW Surface Mount SOT-23
Datasheet:
ChipNobo 2N7002_R1_00001-CN
Products Specifications
Manufacturer:
Package:
SOT-23
Configuration:
-
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
115mA
Operating Temperature -:
-
RDS(on):
5Ω@10V;7Ω@5V
Gate Threshold Voltage (Vgs(th)):
1V@250uA;2.5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
5pF
Number:
1 N-channel
Output Capacitance(Coss):
25pF
Input Capacitance(Ciss):
50pF
Pd - Power Dissipation:
225mW
Gate Charge(Qg):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
