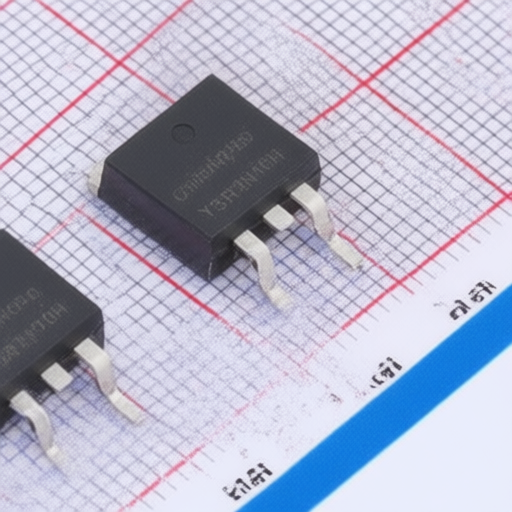

ChipNobo STB15810-CN
Manufacturer:
ChipNobo
Asian Brands
Mfr. Part #:
STB15810-CN
Package:
TO-263
Customer #:
Key Attributes:
MOSFET 100V 120A TO-263
Description:
100V 120A 250W Surface Mount TO-263
Datasheet:
ChipNobo STB15810-CN
Products Specifications
Manufacturer:
Package:
TO-263
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
120A
Operating Temperature -:
-55℃~+150℃
RDS(on):
3.2mΩ@10V
Gate Threshold Voltage (Vgs(th)):
3V@250uA
Reverse Transfer Capacitance (Crss@Vds):
33pF
Output Capacitance(Coss):
1.012nF
Input Capacitance(Ciss):
6.9nF
Pd - Power Dissipation:
250W
Gate Charge(Qg):
118nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
