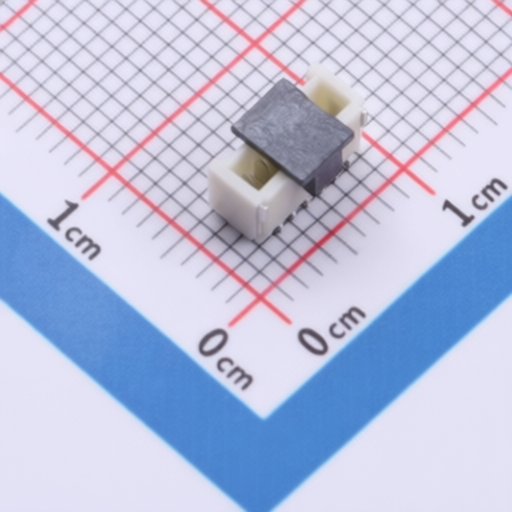

CHIN-BAN 1WF02-524006-00001
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
1WF02-524006-00001
Package:
SMD,P=1mm
Customer #:
Description:
1x6P Tin -25℃~+85℃ 1mm 125V 6 1 Surface Mount,Vertical SMD,P=1mm Headers, Male Pins RoHS
Datasheet:
CHIN-BAN 1WF02-524006-00001
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
3.5mm
Reference Series:
-
Pins Structure:
1x6P
Contact Plating:
Tin
Contact Material:
Copper alloy;-
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
-
Pitch:
1mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
6
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
7.8mm
Row Spacing:
-
Z-Height of the Board:
4.35mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CHIN-BAN
616 Products
CHIN-BAN, established in 2002, is a comprehensive high-tech enterprise with over 2,000 employees and a total investment of 350 million yuan. It specializes in connector and wire harness solutions, mainly producing connectors and wire harnesses.
