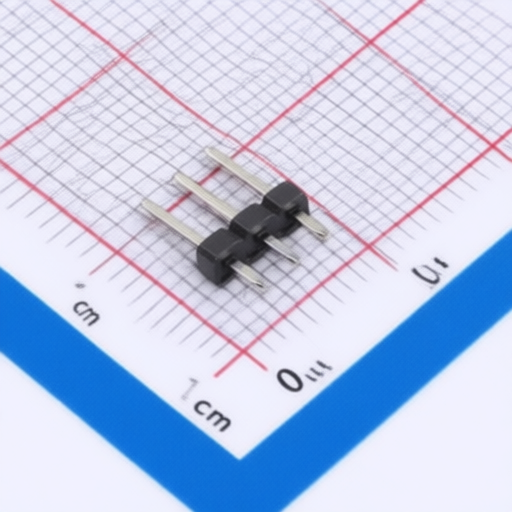

CHIN-BAN P6F03A-601530-B1P
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
P6F03A-601530-B1P
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN HEADER 3POS 2.54mm SINGLE ROW TH
Description:
Pin Header 3 Position 2.54mm Pitch Single Row Through Hole -40℃~+105℃
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Number of Pins:
3P
Pins Structure:
1x3P
Contact Plating:
Gold
Contact Material:
Copper alloy
Operating Temperature:
-40℃~+105℃
Circluar Pins/Square Pins:
Pin Header
Color:
Black
Pitch:
2.54mm
Insulation Height:
1.5mm
Length of Mating Pin:
6mm
Voltage Rating (Max):
250V
Length of End Connection Pin:
3mm
Current Rating-Signal:
3A
Number of Rows:
1
Mounting Type:
Through Hole
Row Spacing:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
