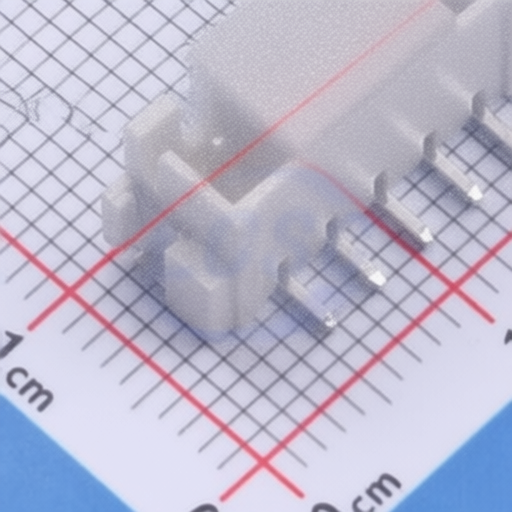

CHIN-BAN WB2529US-05T7-2R
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
WB2529US-05T7-2R
Package:
SMD,P=2.5mm
Customer #:
Description:
1x5P Tin -25℃~+85℃ 2.5mm 250V 5 1 Surface Mount,Vertical SMD,P=2.5mm Headers, Male Pins RoHS
Datasheet:
CHIN-BAN WB2529US-05T7-2R
Products Specifications
Manufacturer:
Package:
SMD,P=2.5mm
Y-Width of Bottom Edge on Board:
6mm
Reference Series:
-
Pins Structure:
1x5P
Contact Plating:
Tin
Contact Material:
Brass;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
-
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
17.5mm
Z-Height of the Board:
7.8mm
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CHIN-BAN
616 Products
CHIN-BAN, established in 2002, is a comprehensive high-tech enterprise with over 2,000 employees and a total investment of 350 million yuan. It specializes in connector and wire harness solutions, mainly producing connectors and wire harnesses.
