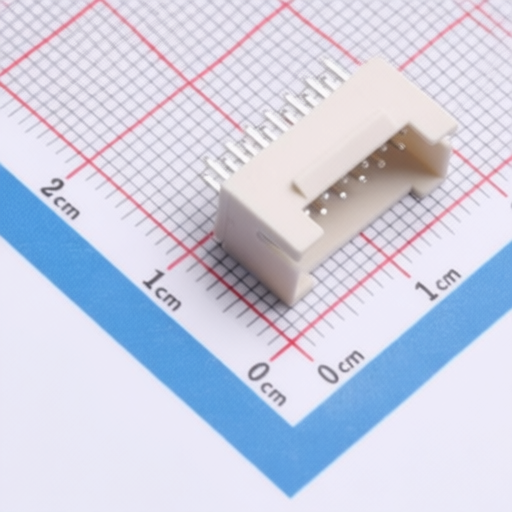

CHIN-BAN WB2013DS-14T3
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
WB2013DS-14T3
Package:
Through Hole,P=2mm
Customer #:
Description:
2x7P Tin -25℃~+85℃ 2mm 250V 7 2 2mm Through Hole Through Hole,P=2mm Headers, Male Pins RoHS
Products Specifications
Manufacturer:
Package:
Through Hole,P=2mm
Y-Width of Bottom Edge on Board:
7.8mm
Reference Series:
-
Pins Structure:
2x7P
Contact Plating:
Tin
Contact Material:
PA46;Brass
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
-
Pitch:
2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
7
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
15.9mm
Z-Height of the Board:
7.7mm
Row Spacing:
2mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
