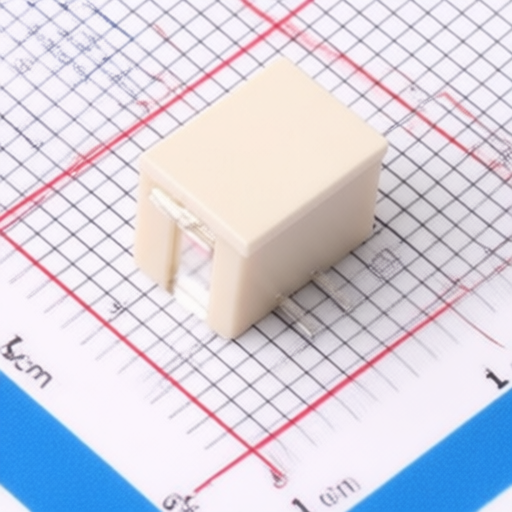

CHIN-BAN 1WF06-924002-00003
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
1WF06-924002-00003
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER SMD 2POS 2mm
Description:
Connector Header 2 position 2mm Pitch 2A Surface Mount,Vertical -25℃~+85℃
Datasheet:
CHIN-BAN 1WF06-924002-00003
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
5.5mm
Pins Structure:
1x2P
Reference Series:
PH
Contact Plating:
Tin
Contact Material:
Copper alloy;PA
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
2mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
8mm
Z-Height of the Board:
6.15mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
