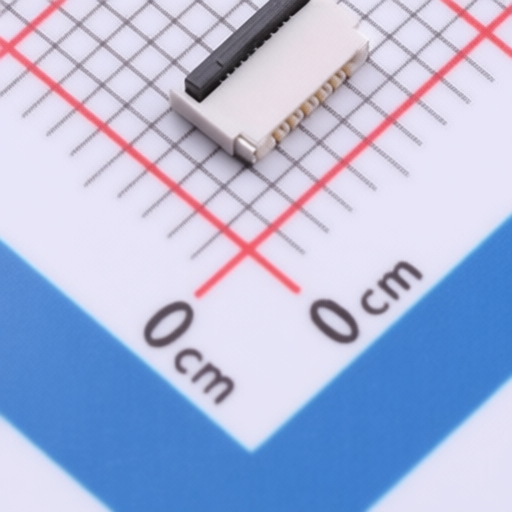

CHIN-BAN F2D05U-A1G5-HR1
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
F2D05U-A1G5-HR1
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Customer #:
Description:
FFC/FPC Connector 5 Position 0.5mm Pitch Double-Sided Contacts, Top and Bottom Entry Surface Mount, Right Angle -25℃~+85℃
Datasheet:
CHIN-BAN F2D05U-A1G5-HR1
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Locking Feature:
-
Operating Temperature:
-25℃~+85℃
Number of Contacts:
5P
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
FFC, FCB Thickness:
0.3mm
Pitch:
0.5mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CHIN-BAN
616 Products
CHIN-BAN, established in 2002, is a comprehensive high-tech enterprise with over 2,000 employees and a total investment of 350 million yuan. It specializes in connector and wire harness solutions, mainly producing connectors and wire harnesses.
