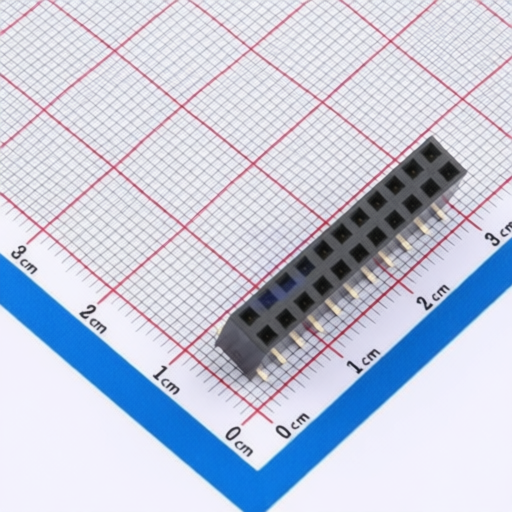

CHIN-BAN FP6Q22W-B1U71-B
Manufacturer:
CHIN-BAN
Asian Brands
Mfr. Part #:
FP6Q22W-B1U71-B
Package:
SMD,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 22POS 2.54mm DUAL ROW SMD
Description:
Female Header 22 Position 2.54mm Pitch Dual Row Surface Mount -40℃~+105℃
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm
Row Spacing:
2.54mm
Operating Temperature:
-40℃~+105℃
Number of Contacts:
22P
Pitch:
2.54mm
Current Rating:
3A
Holes Structure:
2x11P
Voltage Rating (Max):
250V
Mounting Type:
Surface Mount,Vertical
Holes Direction:
Top
Number of Rows:
2
Contact Plating:
Gold
Contact Material:
Copper alloy
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
