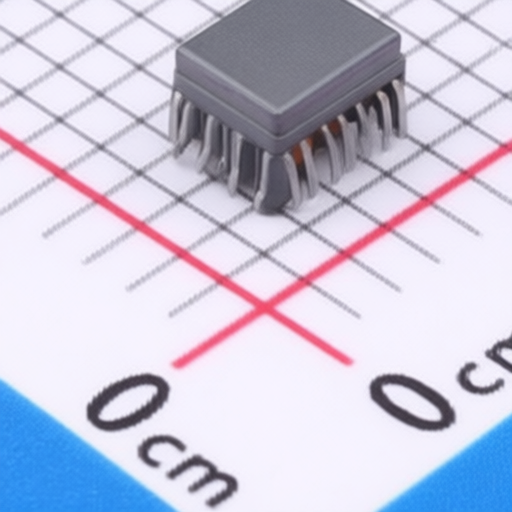

Chilisin AWCU00332523220XT2

Chilisin AWCU00332523220XT2

Name: Chilisin AWCU00332523220XT2
Brand: Chilisin

Manufacturer: Chilisin Asian Brands

Mfr. Part #: AWCU00332523220XT2

Package: SMD-4P,4.5x3.2mm

Customer #:

Key Attributes: CMC 22uH 250mA 2LN 500Ω SMD

Description: 22uH@100kHz 2Line Common Mode Choke Surface Mount-4P 4.5x3.2mm 500Ω@10MHz 250mA DCR 500mΩ

Datasheet: Chilisin AWCU00332523220XT2

Products Specifications

Category:

Passives/Filters/Common Mode Chokes

Manufacturer:

Chilisin

Package:

SMD-4P,4.5x3.2mm

Inductance @ Frequency:

22uH@100kHz

Insulation Resistance(IR):

10MΩ

Operating Temperature:

-50℃~+150℃

DC Resistance(DCR):

500mΩ

Voltage Rating - DC:

80V

Number of Lines:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	1500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8548900001
USHTS	-
TARIC	-
CAHTS	-
BRHTS	-
INHTS	-
MXHTS	-
