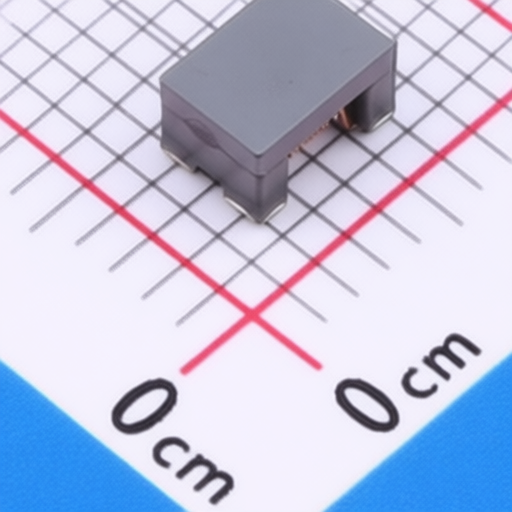

CENKER CMC4532H-601-2P-T
Manufacturer:
CENKER
Asian Brands
Mfr. Part #:
CMC4532H-601-2P-T
Package:
SMD-4P,4.5x3.2mm
Customer #:
Key Attributes:
CMC 2.5A 2LN 600Ω SMD
Description:
2Line Common Mode Choke Surface Mount 3.2x4.5mm 600Ω@100MHz 2.5A DCR 60mΩ
Datasheet:
CENKER CMC4532H-601-2P-T
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,4.5x3.2mm
Operating Temperature:
-40℃~+105℃
Voltage Rating (AC):
-
DC Resistance(DCR):
60mΩ
Voltage Rating - DC:
50V
Number of Lines:
2
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
CENKER
544 Products
Cenker Technology Group
(Shenzhen) Co., Ltd.
(hereinafter referred to as "Cenker") was founded in 2001, it is a professional manufacturer dedicated to the research and development, and manufacturing of inductance series products. The company's products are divided into consumer products X series and automotive A series, the main products include one-piece molded magnetic adhesive, common mode, high-frequency inductors and wound transformers, which are widely used in automotive electronics, new energy, servers, optoelectronics and other fields. Cenker adheres to the core values of "customer first, diligence first, sharing honor and disgrace." With professional technology and rigorous attitude, they actively explore and forge ahead. With technology, quality and service as their core competitiveness, Cenker continuously improves product quality and service level to provide customers with higher quality, professional and high value-added magnetic components, leading the future of the indus
