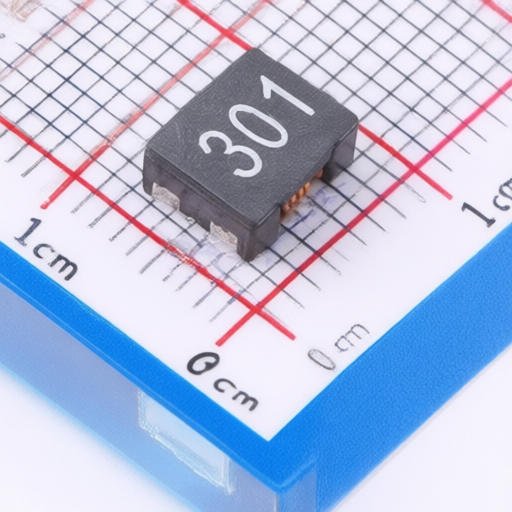

Ceaiya CCM7060A-301
Manufacturer:
Ceaiya
Asian Brands
Mfr. Part #:
CCM7060A-301
Package:
SMD-4P,7.6x6mm
Customer #:
Key Attributes:
CMC 5A 2LN 300Ω SMD
Description:
2Line Common Mode Choke Surface Mount-4P 7.6x6mm 300Ω@100MHz 5A DCR 10mΩ
Datasheet:
Ceaiya CCM7060A-301
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,7.6x6mm
Inductance @ Frequency:
-
Insulation Resistance(IR):
10MΩ
Operating Temperature:
-40℃~+125℃
DC Resistance(DCR):
10mΩ
Voltage Rating (AC):
-
Voltage Rating - DC:
80V
Number of Lines:
2
Voltage Withstand:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8548900001 |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
