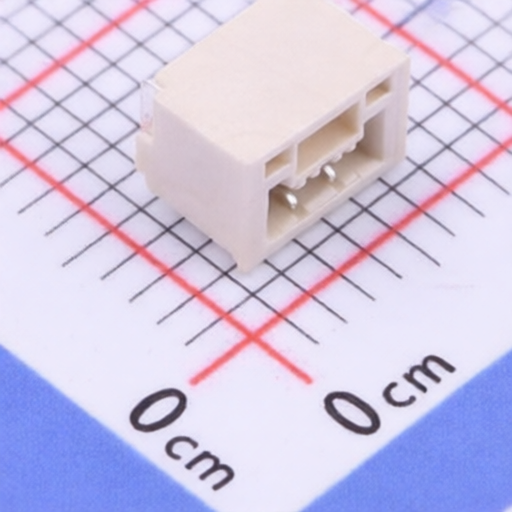

BZCN WTC02W02BA
Manufacturer:
BZCN
Asian Brands
Mfr. Part #:
WTC02W02BA
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 2POS 1.25mm
Description:
Connector Header 2 position 1.25mm Pitch 1A Surface Mount, Right Angle -40℃~+85℃
Datasheet:
BZCN WTC02W02BA
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
4.25mm
Pins Structure:
1x2P
Contact Plating:
Matte Tin
Contact Material:
Brass;LCP
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
2
Number of Rows:
1
Z-Height of the Board:
4.35mm
Operating Temperature:
-40℃~+85℃
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
BZCN
933 Products
Founded in 2009, Zhejiang Bozhong Electric Co., Ltd. is a scientific and technological innovation enterprise integrating R&D, production, sales and investment. Our company is headquartered in Wenzhou, Zhejiang, and has several branches in Yueqing, Dongguan and Shenzhen, producing different series of products. There are mainly tact switches, toggle switches, micro switches, detection switches, TYPE-C sockets, MICRO sockets, 2.5/3.5 earphone sockets, DC sockets, FPC connectors, patch needle sockets, FFC flexible cables, etc. Series products.
