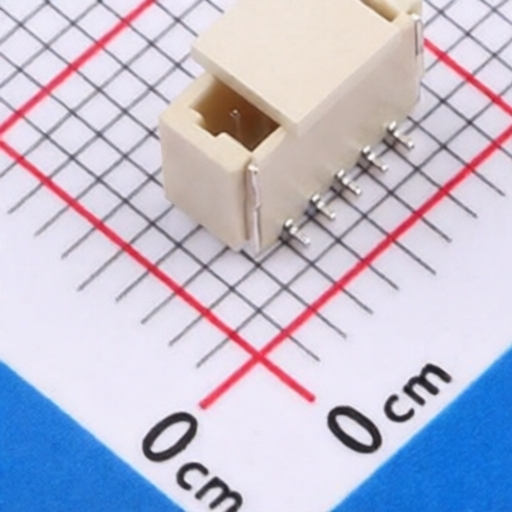

BXCONN WF-1E100A5P
Manufacturer:
BXCONN
Mfr. Part #:
WF-1E100A5P
Package:
SMD,P=1mm
Customer #:
Description:
Connector Header 5 position 1mm Pitch 1A Surface Mount,Vertical -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=1mm
Y-Width of Bottom Edge on Board:
3.6mm
Flame Retardant Rating:
UL94V-0
Reference Series:
SH
Pins Structure:
1x5P
Contact Plating:
Tin
Pitch:
1mm
Contact Material:
Brass;LCP
Voltage Rating (Max):
50V
Number of PINs Per Row:
5
Number of Rows:
1
Z-Height of the Board:
4.9mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Surface Mount,Vertical
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
