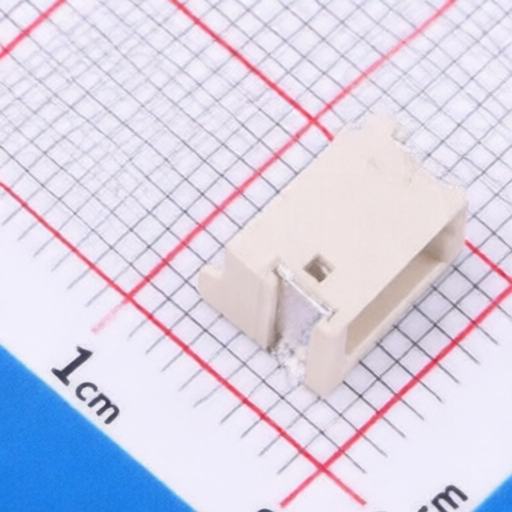

BXCONN WF-1F150A3P
Manufacturer:
BXCONN
Mfr. Part #:
WF-1F150A3P
Package:
SMD,P=1.5mm,Surface Mount,Right Angle
Customer #:
Description:
Connector Header 3 position 1.5mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5mm
Flame Retardant Rating:
UL94V-0
Reference Series:
ZH
Pins Structure:
1x3P
Contact Plating:
Tin
Contact Material:
Brass;LCP
Pitch:
1.5mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
3
Number of Rows:
1
Z-Height of the Board:
3.75mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Surface Mount, Right Angle
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
