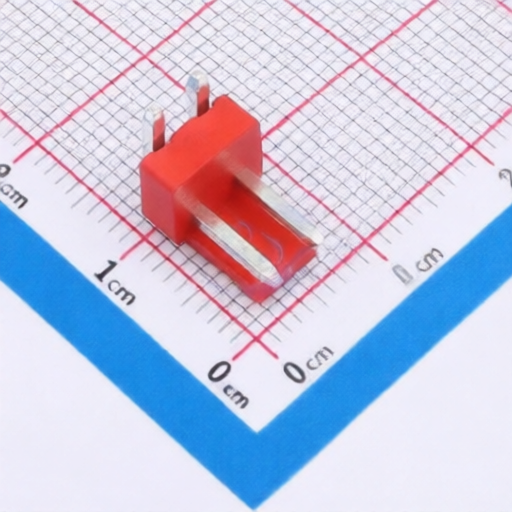

BXCONN WF-1B396A2P-R
Manufacturer:
BXCONN
Asian Brands
Mfr. Part #:
WF-1B396A2P-R
Package:
Through Hole,Right Angle,P=3.96mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 2POS 3.96mm
Description:
Connector Header 2 position 3.96mm Pitch 2A Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3.96mm
Y-Width of Bottom Edge on Board:
-
Pins Structure:
1x2P
Reference Series:
VH
Contact Plating:
Tin
Contact Material:
Brass;-
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
3.96mm
Voltage Rating (Max):
-
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
-
Row Spacing:
-
Z-Height of the Board:
-
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
