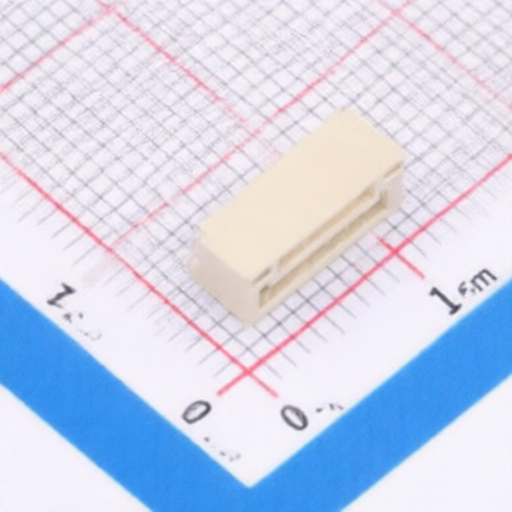

BXCONN WF-1F125B6P
Manufacturer:
BXCONN
Asian Brands
Mfr. Part #:
WF-1F125B6P
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 6POS 1.25mm
Description:
Connector Header 6 position 1.25mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
4.1mm
Flame Retardant Rating:
UL94V-0
Reference Series:
GH
Pins Structure:
1x6P
Contact Plating:
Tin
Contact Material:
Brass;LCP
Pitch:
1.25mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
6
Number of Rows:
1
Z-Height of the Board:
4.35mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
