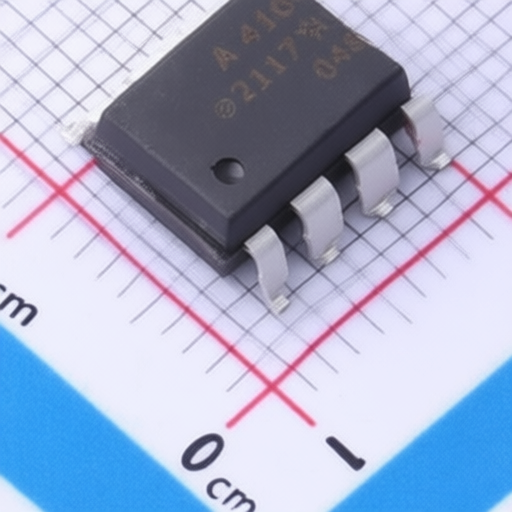

Broadcom HCPL-4100-500E
Manufacturer:
Broadcom
Mfr. Part #:
HCPL-4100-500E
Package:
SOP-8-2.54mm
Customer #:
Key Attributes:
Logic input 1 channel isolation voltage (rms): 3750V
Description:
27V 24mA 10kV/us 20Kbps DC SOP-8-2.54mm Special Purpose Isolators RoHS
Datasheet:
Broadcom HCPL-4100-500E
Products Specifications
Category:
Manufacturer:
Package:
SOP-8-2.54mm
Load Voltage:
27V
Output Current:
24mA
CMTI(kV/us):
10kV/us
High level Delay Time:
1us
Data Rate:
20Kbps
Low level Delay Time:
1.6us
Operating Temperature:
0℃~+70℃
Input threshold current:
100uA
Number of Channels:
1
power dissipation:
360mW
Forward Current(If):
20mA
Isolation Voltage(Vrms):
3.75kV
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
