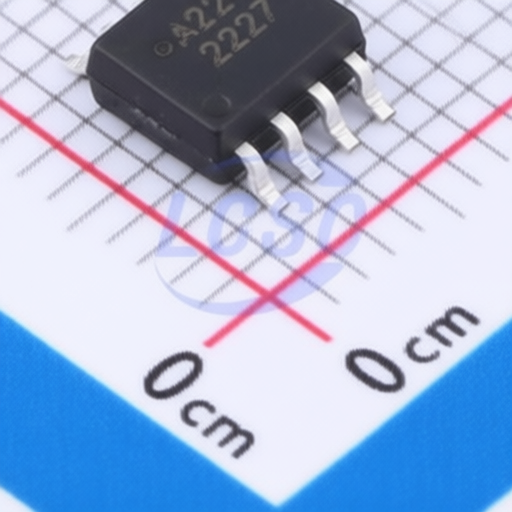

Broadcom ACPL-224-500E
Manufacturer:
Broadcom
Mfr. Part #:
ACPL-224-500E
Package:
SO-8
Customer #:
Description:
50mA 400mV@8mA,2.4mA 80V 6V AC,DC SO-8 Transistor, Photovoltaic Output Optoisolators RoHS
Datasheet:
Broadcom ACPL-224-500E
Products Specifications
Manufacturer:
Package:
SO-8
Fall time:
3us
Rise time:
2us
Output Current:
50mA
Vce Saturation(VCE(sat)):
400mV@8mA,2.4mA
Operating Temperature:
-55℃~+110℃
Load Voltage:
80V
Reverse Voltage:
6V
Current transfer ratio:
20%;400%
Forward Current(If):
50mA
Pd - Power Dissipation:
200mW
Number of Channels:
2
Load Type:
Phototransistor
Input type:
AC,DC
Isolation Voltage(Vrms):
3.75kV
