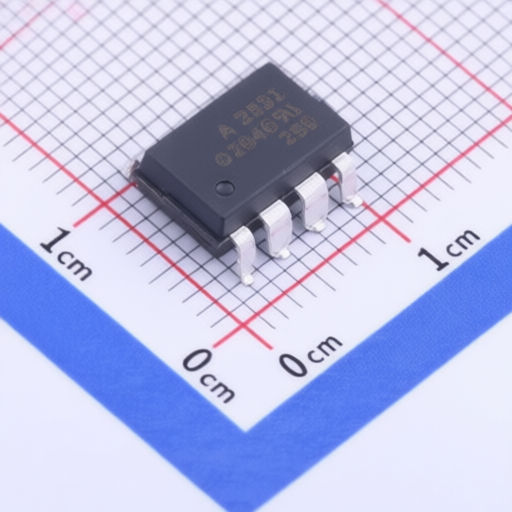

Broadcom HCPL-2531-500E
Manufacturer:
Broadcom
Mfr. Part #:
HCPL-2531-500E
Package:
SOP-8-2.54mm
Customer #:
Key Attributes:
DC Input 2 Channels Isolation Voltage (rms)： 5000V
Description:
8mA 3Mbps 5V 4.5V~5.5V DC SOP-8-2.54mm Transistor, Photovoltaic Output Optoisolators RoHS
Datasheet:
Broadcom HCPL-2531-500E
Products Specifications
Manufacturer:
Package:
SOP-8-2.54mm
Output Current:
8mA
Data Rate:
3Mbps
Low Level Delay Time:
800ns
High Level Delay Time:
800ns
Operating Temperature:
-55℃~+100℃
Reverse Voltage:
5V
Current transfer ratio:
19%
Voltage - Supply:
4.5V~5.5V
Forward Current(If):
25mA
CMTI(kV/us):
10kV/us
Pd - Power Dissipation:
-
Number of Channels:
2
Input threshold current:
-
Input type:
DC
Isolation Voltage(Vrms):
3.75kV
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
