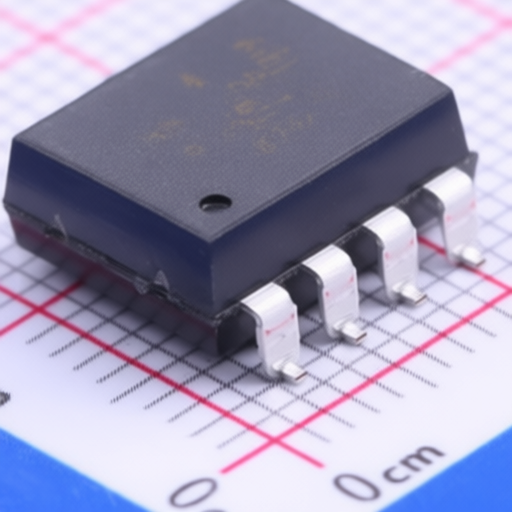

Broadcom HCNW2601-500E

Broadcom HCNW2601-500E

Name: Broadcom HCNW2601-500E
Brand: Broadcom

Manufacturer: Broadcom

Mfr. Part #: HCNW2601-500E

Package: SOP-8-2.54mm

Customer #:

Key Attributes: DC Input 1 Channel Isolation Voltage (rms)： 3750V

Description: 50mA 3V 1.64V 4.5V~5.5V DC SOP-8-2.54mm Logic Output Optoisolators RoHS

Datasheet: Broadcom HCNW2601-500E

Products Specifications

Category:

Isolators/Optocouplers, Optoisolators/Logic Output Optoisolators

Manufacturer:

Broadcom

Package:

SOP-8-2.54mm

Power Dissipation:

85mW

Output Current:

50mA

Low Level Delay Time:

75ns

High Level Delay Time:

75ns

Reverse Voltage:

Voltage - Forward(Vf):

1.64V

Voltage - Supply:

4.5V~5.5V

Forward Current(If):

20mA

Operating Temperature:

-40℃~+85℃

CMTI(kV/us):

15kV/us

Number of Channels:

Input threshold current:

5mA

Isolation Voltage(Vrms):

5kV

Input Type:

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	750
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8541490000
USHTS	8541491010
TARIC	8541490000
CAHTS	8541490090
BRHTS	85414900
INHTS	85414900
MXHTS	8541.40.02
