Broadcom ACNT-H343-500E
Manufacturer:
Broadcom
Mfr. Part #:
ACNT-H343-500E
Package:

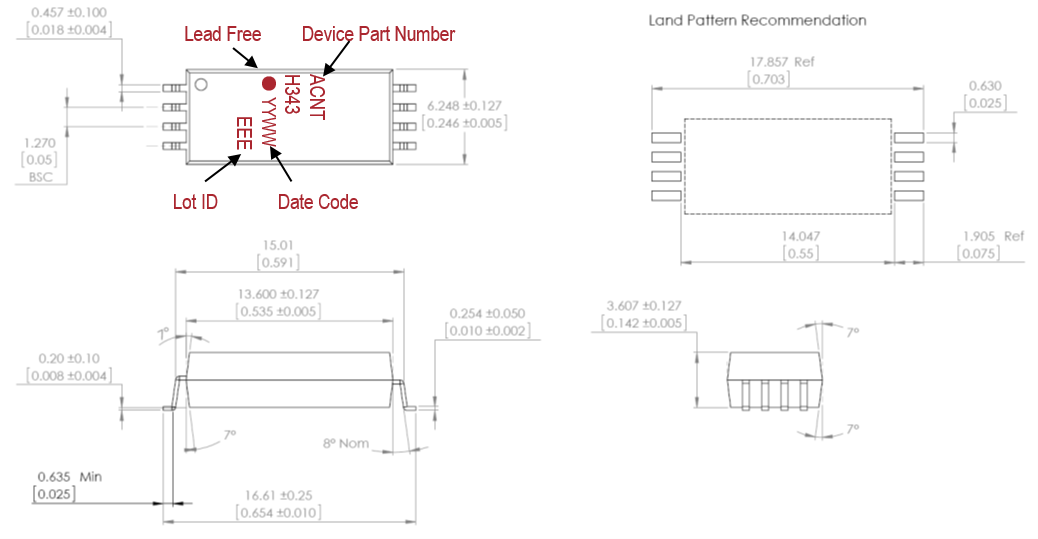

SOIC-8-13.6mm
Customer #:
Key Attributes:
5-Amp Gate Drive Optocoupler in 15-mm SSO8 Package with 100-kV/us Noise Immunity
Description:
5A 5V 15V~30V 16mA 1.5V DC SOIC-8-13.6mm Isolators - Gate Drivers RoHS
Datasheet:
Broadcom ACNT-H343-500E
Products Specifications
Category:
Manufacturer:
Package:
SOIC-8-13.6mm
Power Dissipation:
850mW
Output Current:
5A
Data Rate:
-
Operating Temperature:
-40℃~+110℃
Isolation voltage(Vrms):
7.5kV
Reverse Voltage:
5V
Voltage - Supply:
15V~30V
CMTI(kV/us):
100kV/us
Number of Channels:
1
Input threshold current:
10mA
Propagation Delay(tpd):
150ns;150ns
Forward Current:
16mA
Voltage - Forward(Vf):
1.5V
Input Type:
DC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541490000 |
| USHTS | 8541491010 |
| TARIC | 8541490000 |
| CAHTS | 8541490090 |
| BRHTS | 85414900 |
| INHTS | 85414900 |
| MXHTS | 8541.40.02 |
