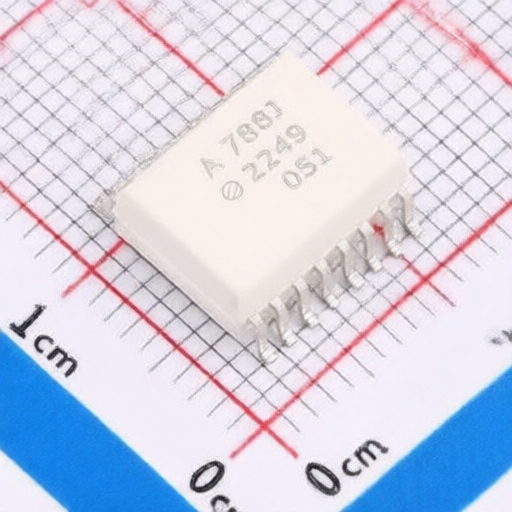

Broadcom HCPL-788J-500E
Manufacturer:
Broadcom
Mfr. Part #:
HCPL-788J-500E
Package:
SO-16-300mil
Customer #:
Key Attributes:
Isolation Amplifier with Short Circuit and Overload Detection
Description:
0mV 350nA 85dB 30kHz 4.5V~5.5V 1 SO-16-300mil Amplifiers RoHS
Datasheet:
Broadcom HCPL-788J-500E
Products Specifications
Manufacturer:
Package:
SO-16-300mil
Vos - Input Offset Voltage:
0mV
Input offset current drift(Ios TC):
-
Ib - Input Bias Current:
350nA
Quiescent Current(Iq):
10.7mA
Common Mode Rejection Ratio(CMRR):
85dB
Output Current:
20mA
Operating Temperature:
-40℃~+85℃
Gain Bandwidth Product:
30kHz
Voltage - Supply:
4.5V~5.5V
Input Offset Voltage Drift(Vos TC):
1uV/℃
Maximum Power Supply Range (Vdd-Vss):
5.5V
Number of Channels:
1
Rail To Rail:
-
Input Offset Current(Ios):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 850 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
