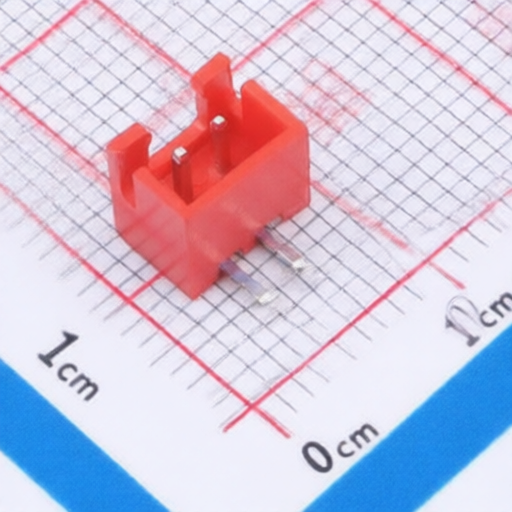

Bossie BX-XH2.54-2PWZ-R
Manufacturer:
Bossie
Mfr. Part #:
BX-XH2.54-2PWZ-R
Package:
Through Hole,Right Angle,P=2.5mm
Customer #:
Description:
Connector Header 2 position 2.5mm Pitch 3A Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.5mm
Y-Width of Bottom Edge on Board:
7.32mm
Reference Series:
XH
Pins Structure:
1x2P
Contact Plating:
Tin
Contact Material:
Copper alloy;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
7.5mm
Row Spacing:
-
Z-Height of the Board:
5.9mm
Mounting Type:
Right Angle
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
