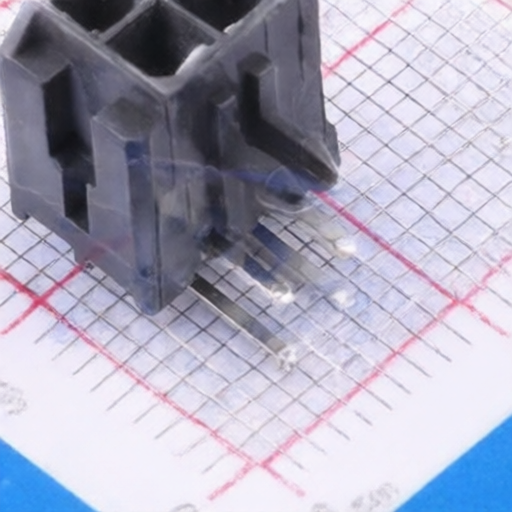

Bossie BX-MX3.0-2-2PWZ
Manufacturer:
Bossie
Mfr. Part #:
BX-MX3.0-2-2PWZ
Package:
Through Hole,Right Angle,P=3mm
Customer #:
Description:
Connector Header 4 position 3mm Pitch 5A Right Angle -25℃~+85℃
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3mm
Y-Width of Bottom Edge on Board:
11.8mm
Reference Series:
Micro-Fit(MX 3.0)
Pins Structure:
2x2P
Contact Plating:
Tin
Contact Material:
Copper alloy;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
Harpoon Contact (Plastic)
Pitch:
3mm
Voltage Rating (Max):
600V
Number of PINs Per Row:
2
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
9mm
Z-Height of the Board:
8.8mm
Row Spacing:
3mm
Mounting Type:
Right Angle
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
