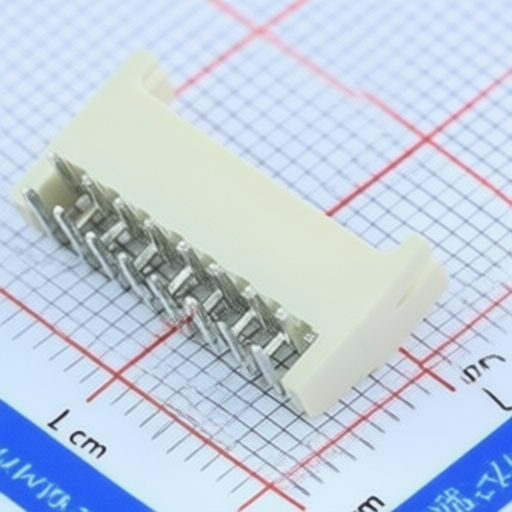

BOOMELE(Boom Precision Elec) PHD-2*8AW
Manufacturer:
BOOMELE(Boom Precision Elec)
Asian Brands
Mfr. Part #:
PHD-2*8AW
Package:
Through Hole,Right Angle,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 16POS 2mm
Description:
Connector Header 16 position 2mm Pitch Right Angle
Datasheet:
BOOMELE(Boom Precision Elec) PHD-2*8AW
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2mm
Y-Width of Bottom Edge on Board:
5mm
Reference Series:
PHD
Pins Structure:
2x8P
Contact Plating:
-
Contact Material:
-;PA
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
8
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
-
Z-Height of the Board:
9.5mm
Row Spacing:
2mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
BOOMELE(Boom Precision Elec)
940 Products
Boom Precision Electronics Co., Ltd.Zhejiang (former Yueqing Boom Electronics CO.,LTD), is a manufacturer engaged in development and manufacturing of various electronic connectors. The products are widely used in household appliances, computers, communication networks, optical, toys and other fields. It has powerful technical force, with over 500 employees (more than 100 medium and senior management and technical personnel), 6000m2 factory buildings, complete precision mold processing equipment and product automation production lines. It's capable of developing more than 300 sets of molds, with the annual output of 3 billion connectors and over 6 billion terminals.
