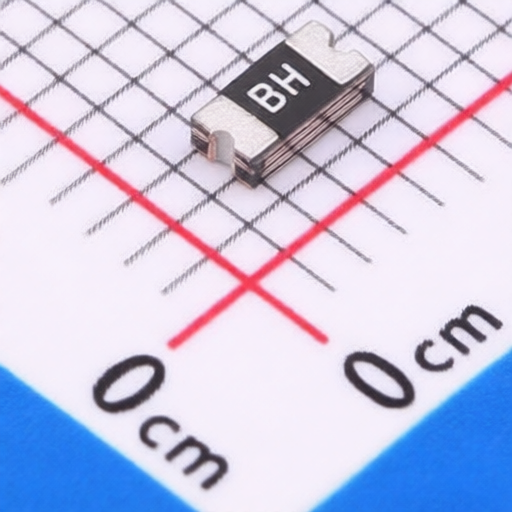

BNstar SMD1206-110C-30V
Manufacturer:
BNstar
Asian Brands
Mfr. Part #:
SMD1206-110C-30V
Package:
1206
Customer #:
Key Attributes:
PTC RESET FUSE 30V 1.1A 1206
Description:
Polymeric PTC Resettable Fuse 30V 1.1A Surface Mount 1206
Datasheet:
BNstar SMD1206-110C-30V
Products Specifications
Category:
Manufacturer:
Package:
1206
Operating Temperature:
-40℃~+85℃
Voltage - Max:
30V
Hold Current:
1.1A
Pitch:
-
Current - Max:
40A
Power Dissipation:
600mW
Trip Current:
2.2A
Resistance @ 25℃:
40mΩ
Time to Trip(Max):
300ms
Resistance - Post Trip (R1) (Max):
270mΩ
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536100000 |
| USHTS | 8536100040 |
| TARIC | 8536109010 |
| CAHTS | 8536100000 |
| BRHTS | 85361000 |
| INHTS | 85361010 |
| MXHTS | 8536.10.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
BNstar
255 Products
Shanghai BNstar
N
ew
M
aterial
T
echnology
C
o., L
td.
(hereinafter referred to as "BNstar") was established in 2017 and specializes in the manufacture of advanced functional materials and polymer electronic components. The company's main products include polymer PTC thermistors, over-current and over-voltage dual protection components, electric heating materials, conductive pastes, and more. These products are widely used in various industries such as communications, batteries, automotive, household appliances, and solar energy. BNstar has a complete quality assurance system and has passed ISO9001 certification, and its products have also passed UL/TUV certifications. The company boasts strong technical expertise and R&D capabilities in the field of conductive polymer materials and PTC technology. With extensive experience in PPTC production line design, construction, and management, BNstar has also established a joint R&D platform with East China University of Science and Technology.
