BIVAR SM1210RGB
Manufacturer:
BIVAR
Mfr. Part #:
SM1210RGB
Package:

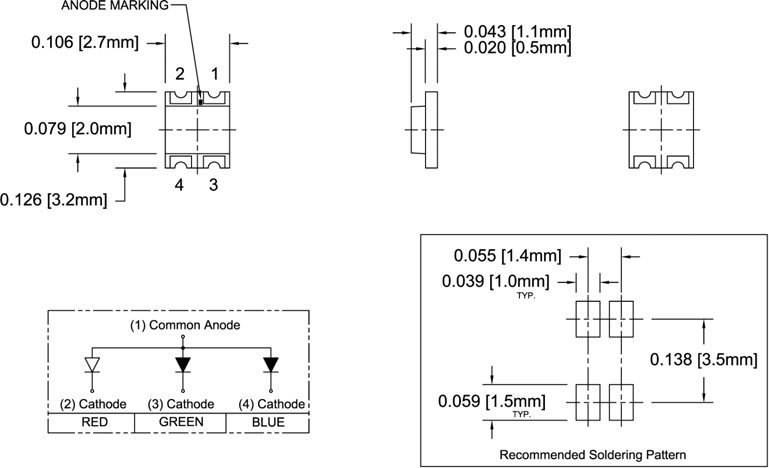

SMD-4P,3.2x2.7mm
Customer #:
Key Attributes:
Surface Mount RGB LED, 1210 Package
Description:
SMD-4P,3.2x2.7mm LED Indication - Discrete RoHS
Datasheet:
BIVAR SM1210RGB
Products Specifications
Manufacturer:
Package:
SMD-4P,3.2x2.7mm
Forward Current:
R:20mA;G:20mA;B:20mA
Lens Color:
Water Clear
Peak Wavelength:
R:645nm;G:523nm;B:468nm
Viewing Angle:
130°
Operating Temperature:
-30℃~+80℃
Power(Watts):
R:78mW;G:84mW;B:84mW
Voltage - Forward(Vf):
R:2.1V~2.6V;G:3.1V~4.2V;B:2.9V~4.2V
Diode Configuration:
Common Anode
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541410090 |
| USHTS | 8541410000 |
| TARIC | 8541410000 |
| CAHTS | 8541410000 |
| BRHTS | 85414124 |
| INHTS | 85414100 |
| MXHTS | 8541.40.03 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
BIVAR
1322 Products
BIVAR is a global leader in the design and manufacture of optoelectronic devices, assemblies, and densely populated circuit board designs. BIVAR products range from light pipes, discrete LEDs, mounts and holders, to PCB packaging and assemblies.
