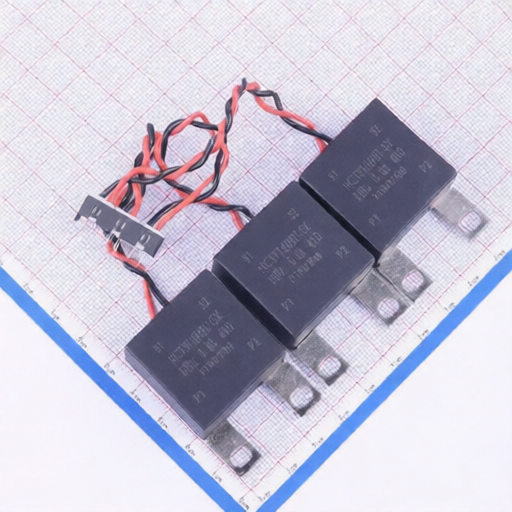

Beijing Hop Tech HCT916HBT-SX
Manufacturer:
Beijing Hop Tech
Asian Brands
Mfr. Part #:
HCT916HBT-SX
Package:
Screw Terminals
Customer #:
Key Attributes:
SENSE XFMR 1000:1 1A Screw Terminals
Description:
1A 1000:1 Sense Transformer 0.02kHz~10kHz 90Ω Secondary Screw Terminals
Datasheet:
Beijing Hop Tech HCT916HBT-SX
Products Specifications
Category:
Manufacturer:
Package:
Screw Terminals
Rated Output Current:
1mA
Turns Ratio:
1000:1
Secondary Side Inductance:
-
Rated input Current:
1A
Frequency Range:
0.02kHz~10kHz
DCR Primary Side (Max):
-
DCR Secondary Side (Max):
90Ω
Isolation Voltage(Vrms):
4kV@AC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 12 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8504500000 |
| USHTS | 8504508000 |
| TARIC | 8504500010 |
| CAHTS | 8504500000 |
| BRHTS | 85045000 |
| INHTS | 85045010 |
| MXHTS | 8504.50.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Beijing Hop Tech
55 Products
Beijing Hop Tech was established in 2001, focusing on the development and sales of intelligent software and hardware. The company primarily produces current and voltage transformers, smart sensors, wireless passive collection terminals, and data acquisition IoT devices.
