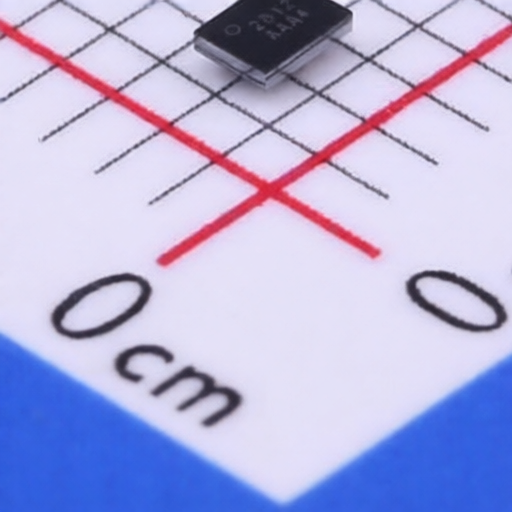

AWINIC(Shanghai Awinic Tech) AW32812CSR
Manufacturer:
AWINIC(Shanghai Awinic Tech)
Asian Brands
Mfr. Part #:
AW32812CSR
Package:
WLCSP-12(1.34x1.78)
Customer #:
Key Attributes:
Overvoltage protection load switch with surge protection function
Description:
1 4.5A Active Low Load Switch WLCSP-12(1.34x1.78) Power Distribution Switches, Load Drivers RoHS
Datasheet:
AWINIC(Shanghai Awinic Tech) AW32812CSR
Products Specifications
Category:
Manufacturer:
Package:
WLCSP-12(1.34x1.78)
Operating Temperature:
-40℃~+85℃
Features:
Over Voltage Protection;Over Temperature Protection;Undervoltage Protection(UVP)
number of channels:
1
Maximum Continuous Current:
4.5A
Control Input Logic:
Active Low
Operating Voltage:
4.5V~29V
RDS(on):
28mΩ
Type:
Load Switch
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536500090 |
| USHTS | 8536507000 |
| TARIC | 8536500300 |
| CAHTS | 8536501000 |
| BRHTS | 85365090 |
| INHTS | 85365090 |
| MXHTS | 8536.50.09 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
AWINIC(Shanghai Awinic Tech)
182 Products
AWINIC (Shanghai Awinic Tech) was founded in 2008 by Sun Hongjun, focusing on the design of mixed-signal, analog, and RF ICs. It primarily serves the consumer electronics sector, including smartphones, wearable devices, smart hardware, and IoT.
