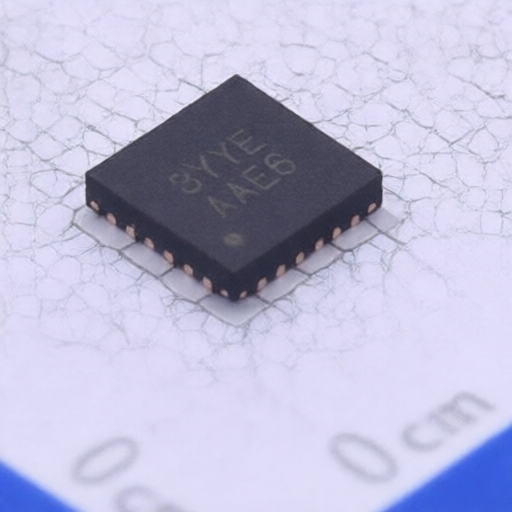

AWINIC(Shanghai Awinic Tech) AW8646QNR
Manufacturer:
AWINIC(Shanghai Awinic Tech)
Asian Brands
Mfr. Part #:
AW8646QNR
Package:
QFN-24-EP(4x4)
Customer #:
Key Attributes:
Dual H-Bridge Stepper Motor Driver
Description:
QFN-24-EP(4x4) Motor Drivers, Controllers RoHS
Datasheet:
AWINIC(Shanghai Awinic Tech) AW8646QNR
Products Specifications
Manufacturer:
Package:
QFN-24-EP(4x4)
Drive Type:
Bipolar Driver
Number of H-bridges:
2
Operating Temperature:
-40℃~+85℃
Technology:
Yes
Output Current:
1.4A
Step Resolution:
32
Control Voltage:
3V~12V
RDS(on):
800mΩ
Interface:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 6000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | - |
| USHTS | - |
| TARIC | - |
| CAHTS | - |
| BRHTS | - |
| INHTS | - |
| MXHTS | - |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
AWINIC(Shanghai Awinic Tech)
182 Products
AWINIC (Shanghai Awinic Tech) was founded in 2008 by Sun Hongjun, focusing on the design of mixed-signal, analog, and RF ICs. It primarily serves the consumer electronics sector, including smartphones, wearable devices, smart hardware, and IoT.
