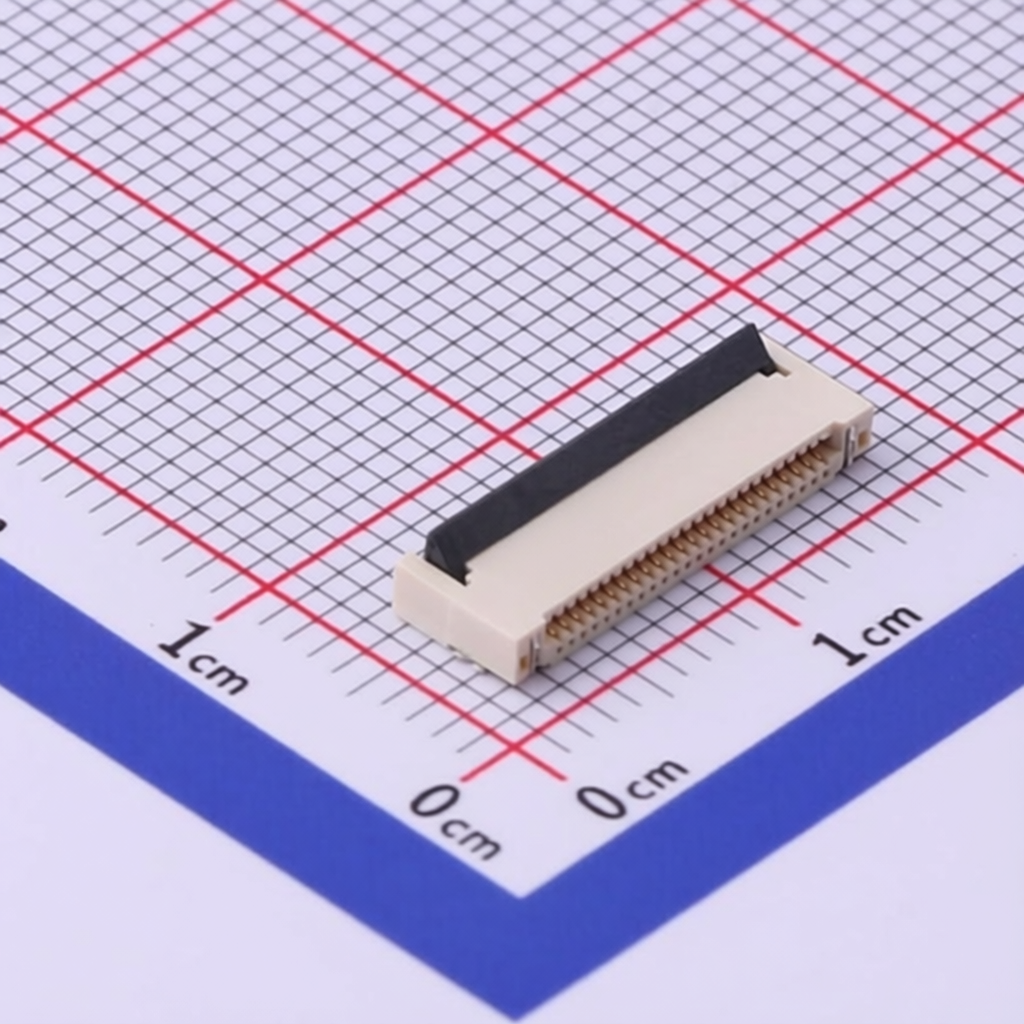

ATOM FPC05024-17205
Manufacturer:
ATOM
Asian Brands
Mfr. Part #:
FPC05024-17205
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 24POS 0.5mm TOP AND BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 24 Position 0.5mm Pitch Double-Sided Contacts, Top and Bottom Entry Surface Mount, Right Angle -45℃~+85℃
Datasheet:
ATOM FPC05024-17205
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Operating Temperature:
-45℃~+85℃
Locking Feature:
Hinged Lid
Number of Contacts:
24P
Pitch:
0.5mm
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ATOM
95 Products
SHENZHEN ATOM TECH, abbreviated as ATOM, was established in 2003 and is a leading manufacturer in the connector industry. Through continuous innovation, ATOM is dedicated to providing revolutionary connector products and solutions that offer superior performance and the best user experience for the connector industry, industrial users, and specialized connector applications. The company primarily produces connectors.
