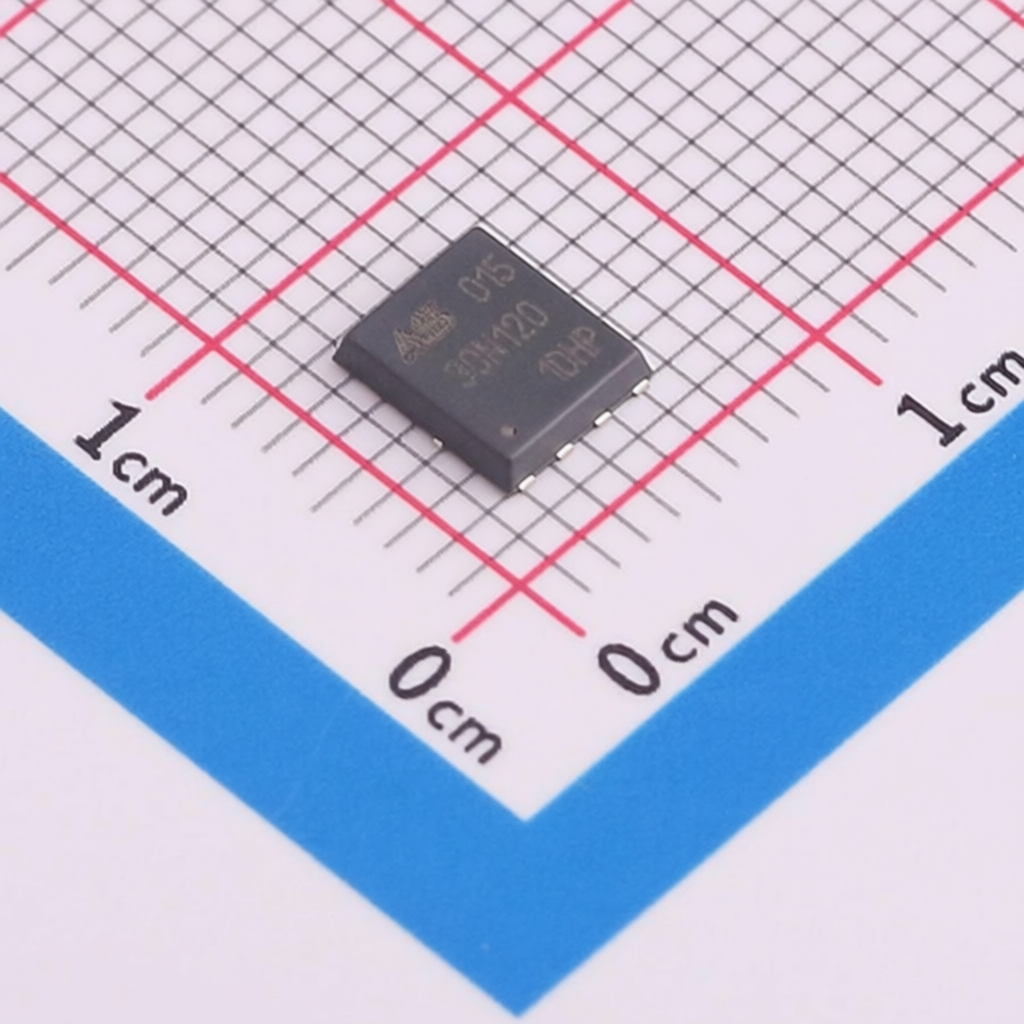

ASDsemi ASDM30N120Q-R
Manufacturer:
ASDsemi
Asian Brands
Mfr. Part #:
ASDM30N120Q-R
Package:
DFN5x6-8
Customer #:
Key Attributes:
MOSFET N-CH 30V 120A DFN5x6-8
Description:
N-Channel 30V 120A 45W Surface Mount DFN5x6-8
Datasheet:
ASDsemi ASDM30N120Q-R
Products Specifications
Manufacturer:
Package:
DFN5x6-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
120A
Operating Temperature -:
-55℃~+150℃
RDS(on):
3.5mΩ@10V
Gate Threshold Voltage (Vgs(th)):
2V@250uA
Reverse Transfer Capacitance (Crss@Vds):
410pF
Number:
1 N-channel
Output Capacitance(Coss):
434pF
Pd - Power Dissipation:
45W
Input Capacitance(Ciss):
2.88nF
Gate Charge(Qg):
63nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ASDsemi
90 Products
Xi’an Ascend Semiconductor Co.,Ltd. is one of top local semiconductor product provider, was started in Xi’an Hi-Tech Park. Ascendsemi has sales offices in Shenzhen, Taiwan, and warehouse in HongKong.
Ascendsemi has seven product lines including Operational Amplifier/Audio Amplifier、Power management IC(Charger、LDO、Buck/Boost、Load Switch、LED Driver)、 Interface circuit、Motor driver 、Lithium protection and charging management、Power Devices(MOSFET、Schottky Diode、Transistor)and Car Electronics. There are more than 500 products in Ascendsemi’s catalog now.These products are widely use in powers, computers, televisions, communication equipment, security monitors, automptive, smart wearing, medical electronics , BMS, etc.
