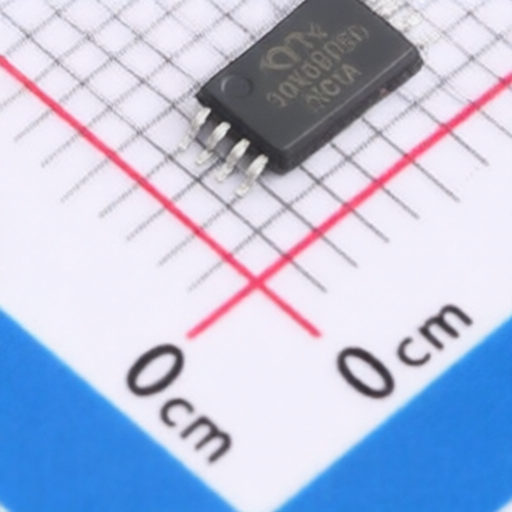

ARK micro AKL30N5P0SD
Manufacturer:
ARK micro
Asian Brands
Mfr. Part #:
AKL30N5P0SD
Package:
TSSOP-8
Customer #:
Key Attributes:
MOSFET N-CH ARR 30V 10A TSSOP-8
Description:
N-Channel Array 30V 10A 2W Surface Mount TSSOP-8
Datasheet:
ARK micro AKL30N5P0SD
Products Specifications
Manufacturer:
Package:
TSSOP-8
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
10A
RDS(on):
12.5mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
151pF
Number:
2 N-Channel
Output Capacitance(Coss):
187pF
Input Capacitance(Ciss):
1.527nF
Pd - Power Dissipation:
2W
Gate Charge(Qg):
18.8nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
