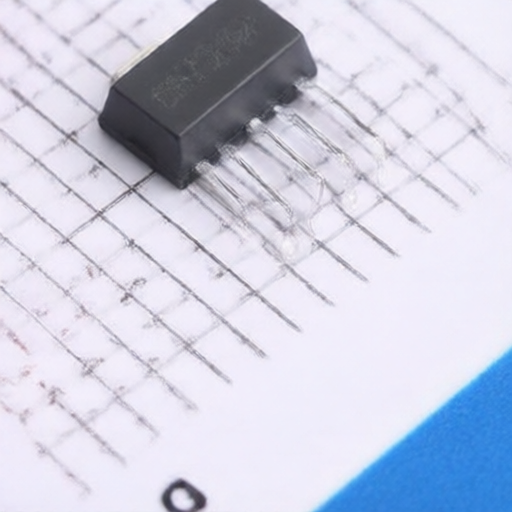

ARK micro DMX0652E
Manufacturer:
ARK micro
Asian Brands
Mfr. Part #:
DMX0652E
Package:
SOT-89
Customer #:
Key Attributes:
MOSFET N-CH 60V 1A SOT-89
Description:
N-Channel 60V 1A 1W Surface Mount SOT-89
Datasheet:
ARK micro DMX0652E
Products Specifications
Manufacturer:
Package:
SOT-89
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
1A
Operating Temperature -:
-55℃~+150℃
RDS(on):
500mΩ@0V,200mA
Gate Threshold Voltage (Vgs(th)):
-
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
3.2pF
Number:
1 N-channel
Output Capacitance(Coss):
96.5pF
Pd - Power Dissipation:
1W
Input Capacitance(Ciss):
543.3pF
Gate Charge(Qg):
11.3nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ARK micro
81 Products
ARK Microelectronics Co., Ltd.
(hereinafter referred to as "ARK micro") was founded in 2008 and is the only company in China that focuses on depletion-type MOSFET design. The products provide outstanding power handling and power management capabilities in an integrated control manner. All of the company's products are independently developed, and its related technologies have obtained invention patents. ARK micro's products include two product lines: industrial and consumer. The independently developed DMMOS® series products cover the full range of depletion-type MOSFETs. Products are widely used in fast charging, LED, industrial control, electric vehicles, communication circuits, Internet of Things, photovoltaics, server power supplies, and charging piles. ARK micro's products are high-quality, high-performance, and low-cost, recognized and widely used by both domestic and international customers.
