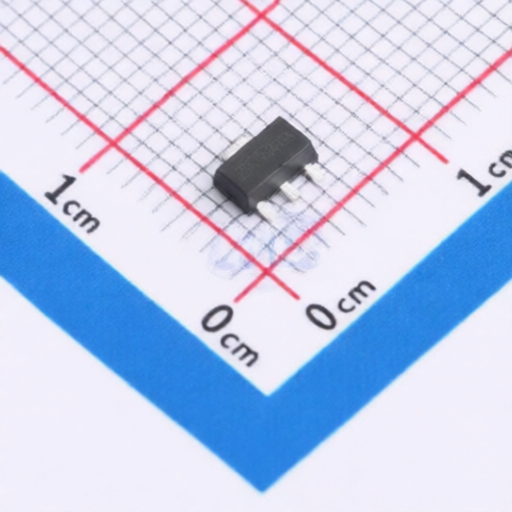

ARK micro DMX22C40A
Manufacturer:
ARK micro
Asian Brands
Mfr. Part #:
DMX22C40A
Package:
SOT-89
Customer #:
Key Attributes:
MOSFET 400V 0.12A SOT-89
Description:
400V 0.12A 1W Surface Mount SOT-89
Datasheet:
ARK micro DMX22C40A
Products Specifications
Manufacturer:
Package:
SOT-89
Drain to Source Voltage:
400V
Current - Continuous Drain(Id):
120mA
Operating Temperature -:
-55℃~+150℃
RDS(on):
25Ω@0V
Gate Threshold Voltage (Vgs(th)):
-
Reverse Transfer Capacitance (Crss@Vds):
3.4pF
Number:
-
Output Capacitance(Coss):
15.1pF
Pd - Power Dissipation:
1W
Input Capacitance(Ciss):
84pF
Gate Charge(Qg):
3.7nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ARK micro
81 Products
ARK Microelectronics Co., Ltd.
(hereinafter referred to as "ARK micro") was founded in 2008 and is the only company in China that focuses on depletion-type MOSFET design. The products provide outstanding power handling and power management capabilities in an integrated control manner. All of the company's products are independently developed, and its related technologies have obtained invention patents. ARK micro's products include two product lines: industrial and consumer. The independently developed DMMOS® series products cover the full range of depletion-type MOSFETs. Products are widely used in fast charging, LED, industrial control, electric vehicles, communication circuits, Internet of Things, photovoltaics, server power supplies, and charging piles. ARK micro's products are high-quality, high-performance, and low-cost, recognized and widely used by both domestic and international customers.
