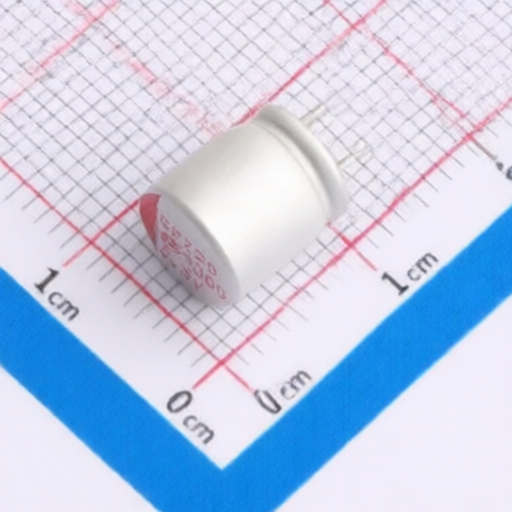

APAQ 6R3AREP102M08X8E10P35
Manufacturer:
APAQ
Asian Brands
Mfr. Part #:
6R3AREP102M08X8E10P35
Package:
Through Hole,D8xL9mm
Customer #:
Description:
6.3V 1000uF ±20% 10mΩ@300kHz 5.1A@100kHz Through Hole,D8xL9mm Aluminum - Polymer Capacitors RoHS
Products Specifications
Manufacturer:
Package:
Through Hole,D8xL9mm
Voltage Rating:
6.3V
Capacitance:
1000uF
Lifetime:
3000hrs@105℃
Tolerance:
±20%
Pin Spacing:
3.5mm
Equivalent Series Resistance(ESR):
10mΩ@300kHz
Height - Seated (Max):
8mm
Ripple Current:
5.1A@100kHz
Operating Temperature:
-55℃~+105℃
Diameter:
8mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8532229000 |
| USHTS | 8532230020 |
| TARIC | 8532220000 |
| CAHTS | 8532220000 |
| BRHTS | 85322200 |
| INHTS | 85322200 |
| MXHTS | 8532.22.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
APAQ
366 Products
APAQ Tech was established in December 2005, located in the Zhunan Science Park, Miaoli, Taiwan. It is dedicated to becoming an international manufacturer of conductive polymer solid capacitors. The company primarily produces conductive polymer solid capacitors.
