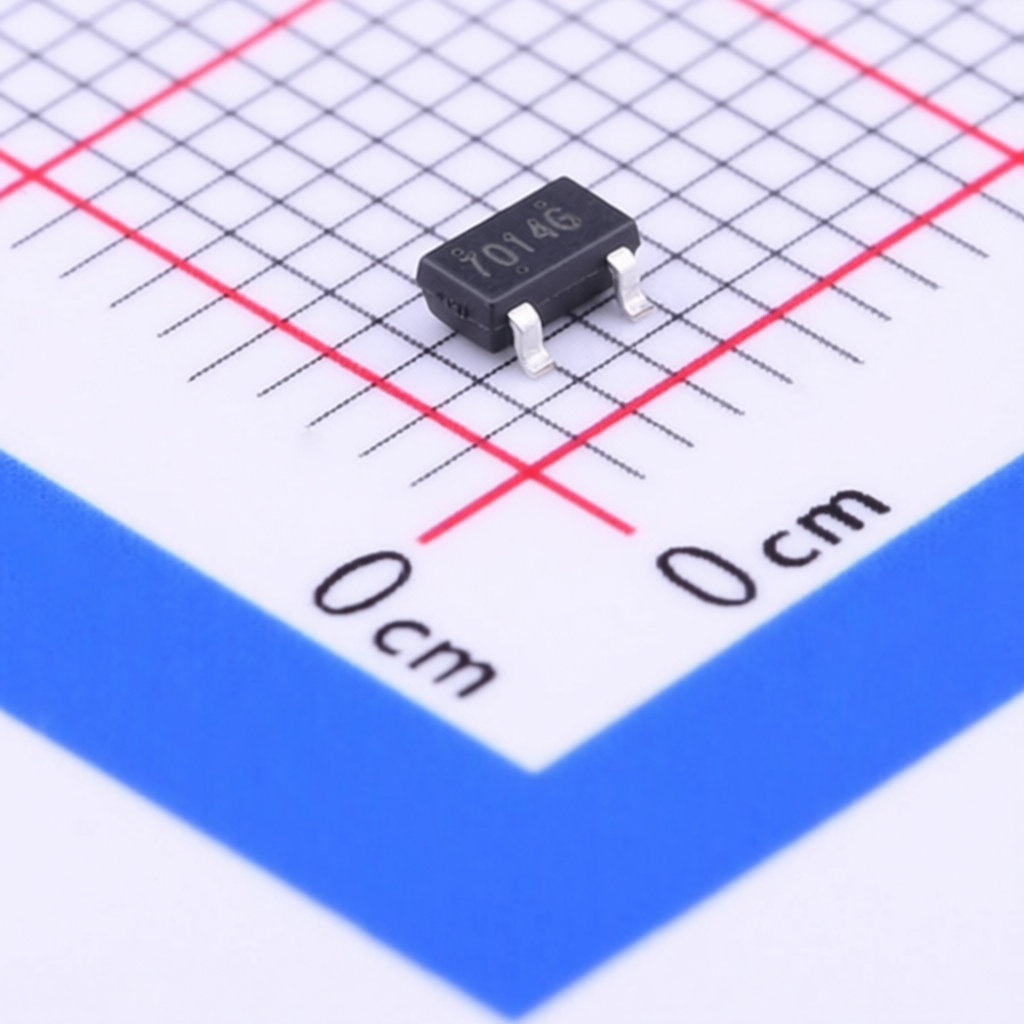

ANPEC APM2301CAC-TRG
Manufacturer:
ANPEC
Asian Brands
Mfr. Part #:
APM2301CAC-TRG
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 2.8A SOT-23
Description:
P-Channel 20V 2.8A 830mW Surface Mount SOT-23
Datasheet:
ANPEC APM2301CAC-TRG
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2.8A
Operating Temperature -:
-55℃~+150℃
RDS(on):
70mΩ@4.5V,2.8A
Gate Threshold Voltage (Vgs(th)):
1V
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
75pF
Number:
1 P-Channel
Input Capacitance(Ciss):
580pF
Output Capacitance(Coss):
100pF
Pd - Power Dissipation:
830mW
Gate Charge(Qg):
7nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
