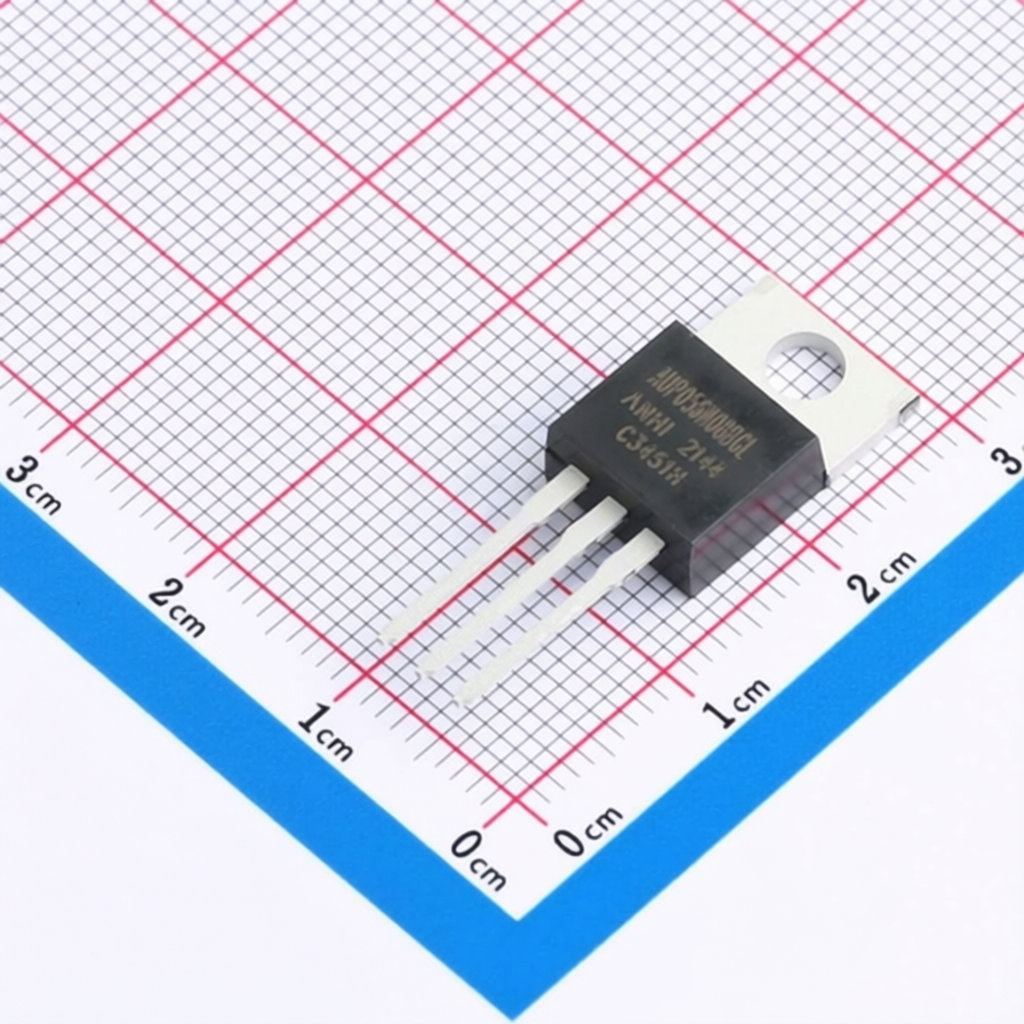

ANHI AUP056N08BGL
Manufacturer:
ANHI
Asian Brands
Mfr. Part #:
AUP056N08BGL
Package:
TO-220
Customer #:
Key Attributes:
MOSFET N-CH 85V 65A TO-220
Description:
N-Channel 85V 65A 158W Through Hole TO-220
Datasheet:
ANHI AUP056N08BGL
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
85V
Current - Continuous Drain(Id):
65A
RDS(on):
5.6mΩ@10V,20A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
107.1pF
Number:
1 N-channel
Output Capacitance(Coss):
1.215nF
Input Capacitance(Ciss):
4.553nF
Pd - Power Dissipation:
158W
Gate Charge(Qg):
63.7nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
ANHI
99 Products
ANHI, established in 2019 with a 180 million RMB investment from the Jinan municipal government, focuses on the design, manufacturing, process development, sales, and technical services of power device products and modules. The main products include MOSFETs, super junction MOSFETs, IGBTs, and SiC MOSFETs.
