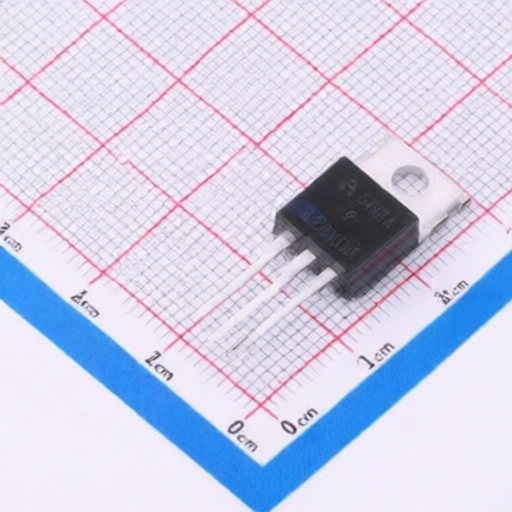

ALLPOWER AP120N03
Manufacturer:
ALLPOWER
Asian Brands
Mfr. Part #:
AP120N03
Package:
TO-220C
Customer #:
Key Attributes:
MOSFET N-CH 30V 120A TO-220C
Description:
N-Channel 30V 120A 108W Through Hole TO-220C
Products Specifications
Manufacturer:
Package:
TO-220C
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
120A
Operating Temperature -:
-55℃~+150℃
RDS(on):
3mΩ@10V
Gate Threshold Voltage (Vgs(th)):
1.5V
Reverse Transfer Capacitance (Crss@Vds):
330pF@15V
Number:
1 N-channel
Output Capacitance(Coss):
393pF
Input Capacitance(Ciss):
2.68nF@15V
Pd - Power Dissipation:
108W
Gate Charge(Qg):
30nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
